This Camera is a true plug & play network camera that can be installed in less than 60 seconds with no network configuration. No IP address settings or port forwarding required to connect to the camera, just enter the supplied UID & password and you will be connected to the live video with your mobile devices anytime, anywhere.
Features:
* M-jpeg compression format, 0.3 megapixels, provide high-quality images.
* Support QR Code Scanning.
* Maximum support 32G TF Card.
* High image & video quality, Two-way audio monitoring.
* P2P(Plug&Play)technology, penetration degree can be 99%.

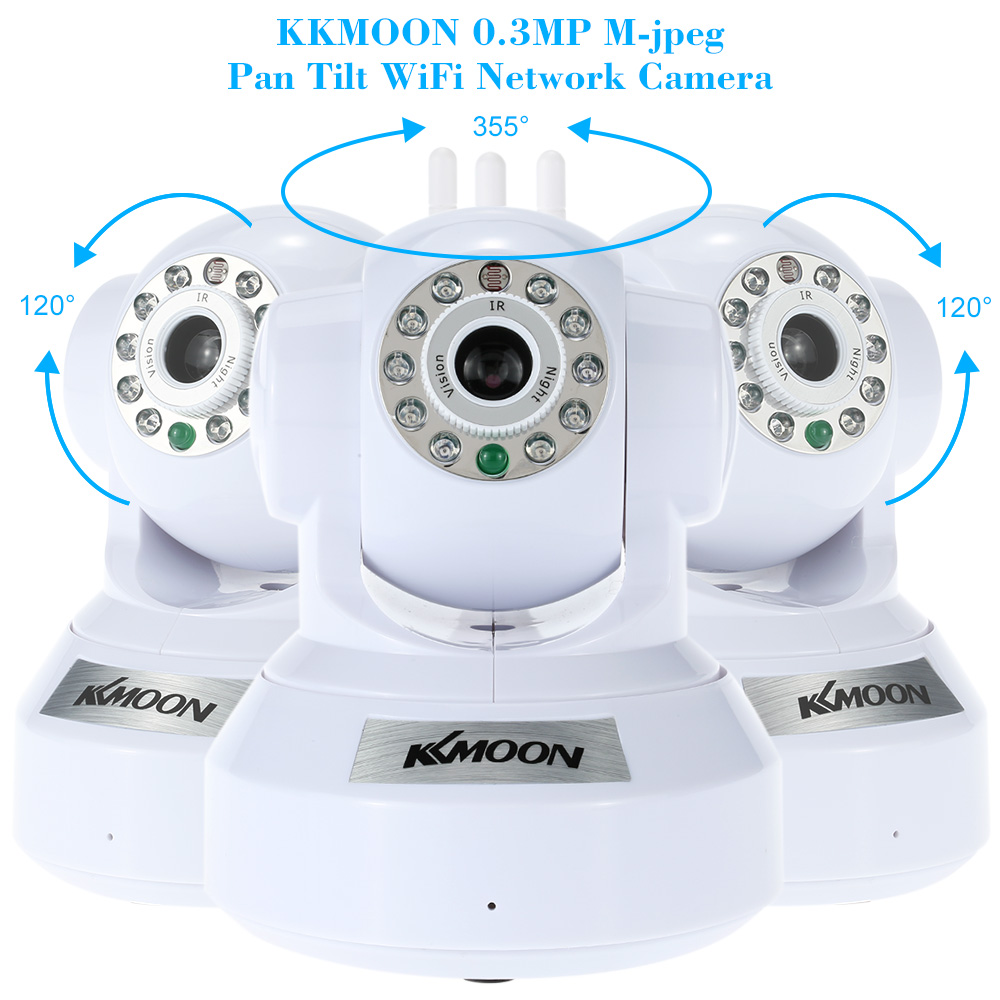

* Allow remote Pan/Tilt control (Pan : 355°& Tilt : 120°).
* Mechanical IR-Cut device offers outstanding day/night performance, great color.
* Allow remote viewing & record from anywhere anytime.
* Wi-Fi compliant with wireless standards IEEE 802.11b/g/n.
* Support TCP/IP, RTSP, P2P SMTP,FTP, PPPOE and other Internet related protocols.
* Support 13 languages, 64-channel view via Super-Client software, auto-search the device, remote control, remote video playback, E-mail alarm, etc.
Specifications:
| Features: | |
| System Security | Account, password authority management |
| Free DDNS | Free DDNS, supports dynamic IP |
| View by Phone | Support HD pic IOS, Android mobile view (iOS 4.3、Android OS 2.3 above) |
| Local Storage | Support up to 32GB MicroSD card，24-hour loop recording |
| Monitor Advantage | Support for IPhone、 Android、Computer monitor. Miscrosoft certification plug in, no virus risk. |
| PnP | Plug & Play,99% penetration rate, Easy to setup: 1, connect the network cable and power adapter, 2, install APP, scan UID code to add camera. 3, Click online camera to view the camera. |
| QR Code Scanning | UID scan technology applied, easy to operate, and highly confidential |
| Super Client | 1, 4, 9, 16, 25, 36, 64 channel central management software, no user number limitation, centralized surveillance, remote record and playback, alarm email, ect. |
| System | |
| OS | Embedded Linux OS |
| Video | |
| Compression Format | M-jpeg |
| Resolution | VGA(640 * 480), QVGA(320 * 240) |
| Image Sensor | 1/4" CMOS |
| Minimum illumination | 0.5Lux |
| SNR | ≥50dB |
| IR Control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view model |
| Lens/Viewing Angle | 3.6mm@F1.4 |
| Night Vision | |
| IR-CUT | Built in IR-CUT, no color cast in day, clearer images at night |
| Effect | 10pcs Φ5mm LEDs IR Distance: 10 m |
| Audio | |
| Input | Built in Microphone |
| Output | Internal speaker(8Ω1W) |
| P/T Network | |
| Socket | RJ-45 10/100Mb |
| P/T | Pan: 355°, Tilt:120° |
| Preset Postion | Suppor up to 16 preset postions |
| Network Protocol | TCP/IP、UDP/IP、SMTP、FTP、DHCP、DDNS、UPNP、NTP、PPPOE |
| Online Visitor | Support 4 online visitors simutaneoursly |
| WIFI | IEEE 802.11 b/g/n |
| Alarm | |
| Motion Detection | Support motion detecting |
| Certificate | |
| Certificate |
FCC CE RoHS |
| Other Information | |
| Model | TP-C516WT |
| Housing Material | ABS |
| Application environment | Indoor |
| Power | DC 5V 2A |
| Temperature | -10~55 °C |
| Humidity | 10%~85% |
| Power Consumption | <5W |
| Color | White |
| Item Weight | Approx. 280g / 9.88oz |
| Item Size | Approx. 10.3 * 11 * 13.6cm / 4 * 4.3 * 5.4in (L * W * H) |
| Package Size | Approx. 17.3 * 14.4 * 12cm / 6.8 * 5.7 * 4.7in (L * W * H) |
| Total Weight | Approx. 585g / 20.66oz |
| Quantity | 1 pcs |
| Warranty | 1 Year |
Package list:
1 * IP camera
1 * Power adapter
1 * Network cable
1 * Mounting bracket
2 * Mounting screws
1 * User manual
1 * CD
1 * Warranty card
