Notice：
This DVR does not include 3.5" HDD.
Overview:
Our home security system DVR have many uses: the security detection of public places, monitoring for unattended stores and warehouses protection, the parks and rides security record and observation, Safety Monitoring for cottages and residential areas, and other surveillance needs for outdoor/indoor.
This DVR is fully functional and supports multi-ch playback, which provide a great variety of choices for security monitoring and bring you a safer monitoring system. Meanwhile this DVR provides digital zoom, which allows you to get a closer view of record clips, it maximum supports 3TB 3.5" harddisk(Hard Disk Drive not Included). Finally, you can choose scheduled recording, set motion detection or watch the video on your computer and phone. Easy installation, easy operation.
Features:
* H.264 Video Compression format.
* Support pre-alarm recording(before 30 sec).
* Support 1920 * 1080P HDMI and 1024 * 768 VGA output.
* 8-ch video and 4-ch Audio input, 8-ch playback.
* Multi-stream recording resolution and Multiple backup modes.
* Scheduled recording, motion detection, digital zoom.

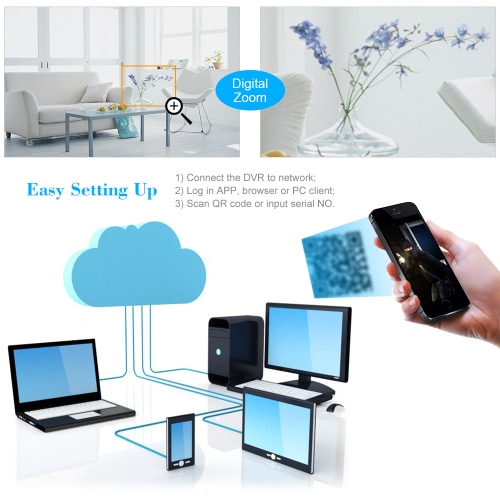

* With P2P cloud function.
Specifications:
| Model | TP-DVR128 |
| Main Processor | Hisilicon HI3520D Chip |
| Operating System | Embedded Linux System |
| Menu Display | 1/4/8/9 Screen |
| Video Compression | H.264 |
| video standards | PAL (625 line, 50f/s); NTSC(525 line, 60 f/s); Switch selectable |
| Video Input | 8-ch BNC(1.0vp-p, 75Ω) |
| Audio Input | 4-ch RCA |
| Video Output |
1-ch HDMI + 1-ch VGA + 1-ch BNC |
| Audio Output | 1-ch RCA |
| Recording resolution |
Main-stream: 960H / D1 / HD1 / CIF |
| Frame Rate | 1/25fps-Real time frame rate |
| Dual Stream | Support |
| Max Playback | 8-ch |
| Code Capacity | 8 * 960H/D1 input |
| Analog Mode | 8 * 960H(1/12fps), 8 * D1(1/25fps) |
| Interface Type | SATA Interface |
| space usage | CIF: 5G/day/ch D1: 20G/day/ch 720P: 40G/day/ch 1080P: 80G/day/ch |
| Search Mode | Time / Date search, fact retrieval, channel retrieval |
| Capacity | Up to 3TB capacity for each HDD |
| Network Interface | 1 RJ-45 10M/100M adaptive Ethernet Interface |
| USB Interface | 2 USB 2.0 Interface |
| Serial Interface | 1 RS485 interface |
| Backup Mode | Network backup, USB mobile hard disk, USB burner |
| Recording Mode | Manual > Alarm > Dynamic Detection > timing |
| Power Supply | 12V 2A |
| Item Weight | Approx.848g / 1.869Lb |
| Item Size | Approx.25.9 * 22.2 * 4.8cm / 10.20 * 8.74 * 1.89in( L * W * H ) |
| Package Size | Approx.30.5 * 7.5 * 33cm / 12.0 * 2.95 * 13.0in( L * W * H ) |
| Total Weight | Approx.1266g / 2.792Lb |
| Quantity | 1pcs |
| Warranty | 1 Year |
Package list:
1 * 8CH H.264 HD DVR(Hard Drive not Included)
1 * Power Supply for DVR(UK Plug)
1 * Remote Control for DVR
1 * USB Mouse for DVR
1 * Accessory Bag for DVR
1 * CD Software
1 * User Manual
