1. Camera Operation Video on PC Client: https://www.youtube.com/watch?v=g6ADXrCFWno&feature=youtu.be
2. Camera Operation Video on Phone APP: https://www.youtube.com/watch?v=4N02HXhMqIM&feature=youtu.be
This Camera is TOMTOP's new IP Camera product, which is applied for family, offices, chain store security monitoring, staff management. It is welcomed by the market with its appearance, narrow bandwidth, high-flow images, strong function, high stability.
Features:

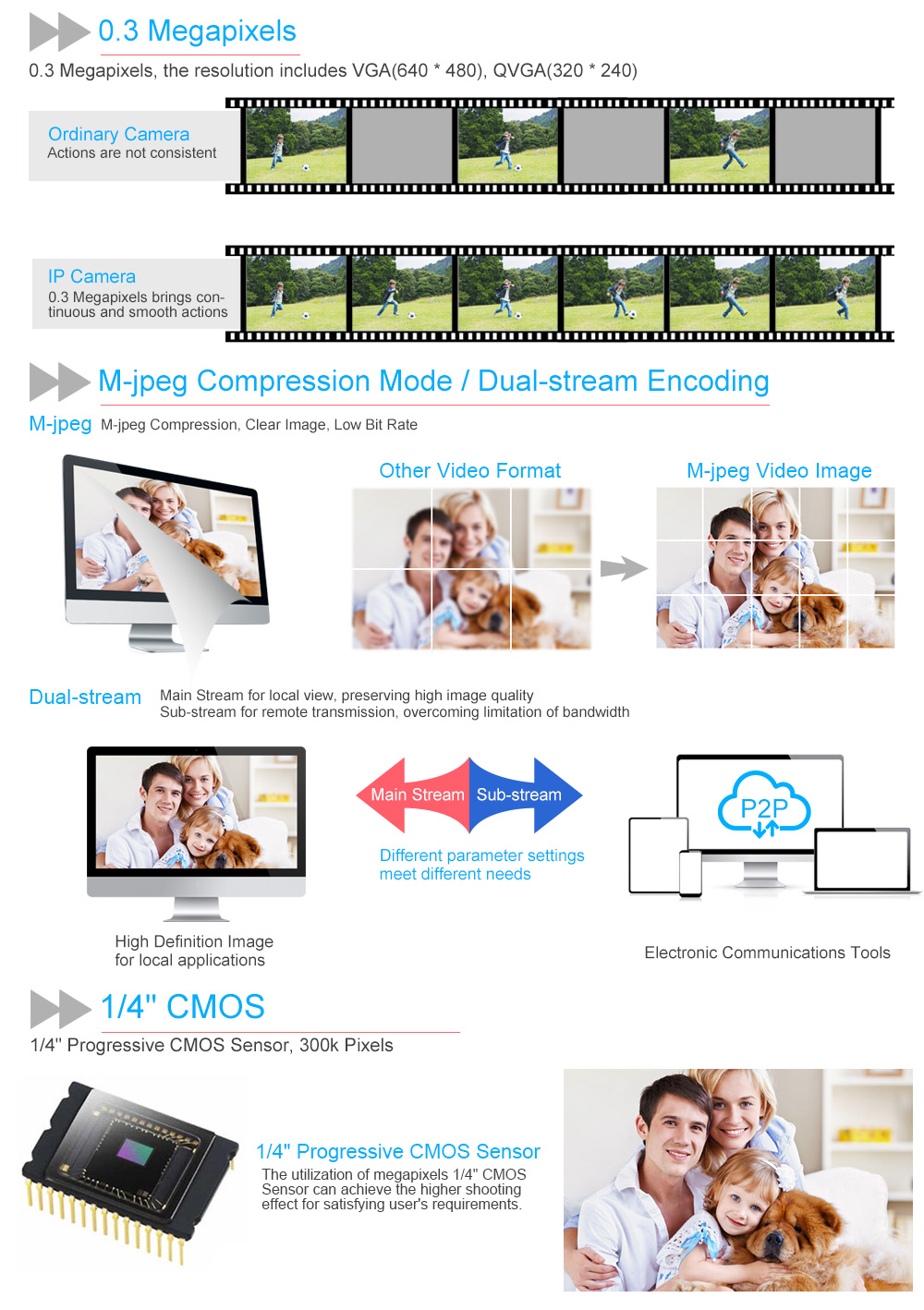

* M-jpeg compression format, 0.3 megapixels, provide high-quality images.
* Support QR Code Scanning.
* High image & video quality, Two-way audio monitoring.
* P2P(Plug&Play)technology, penetration degree can be 99%

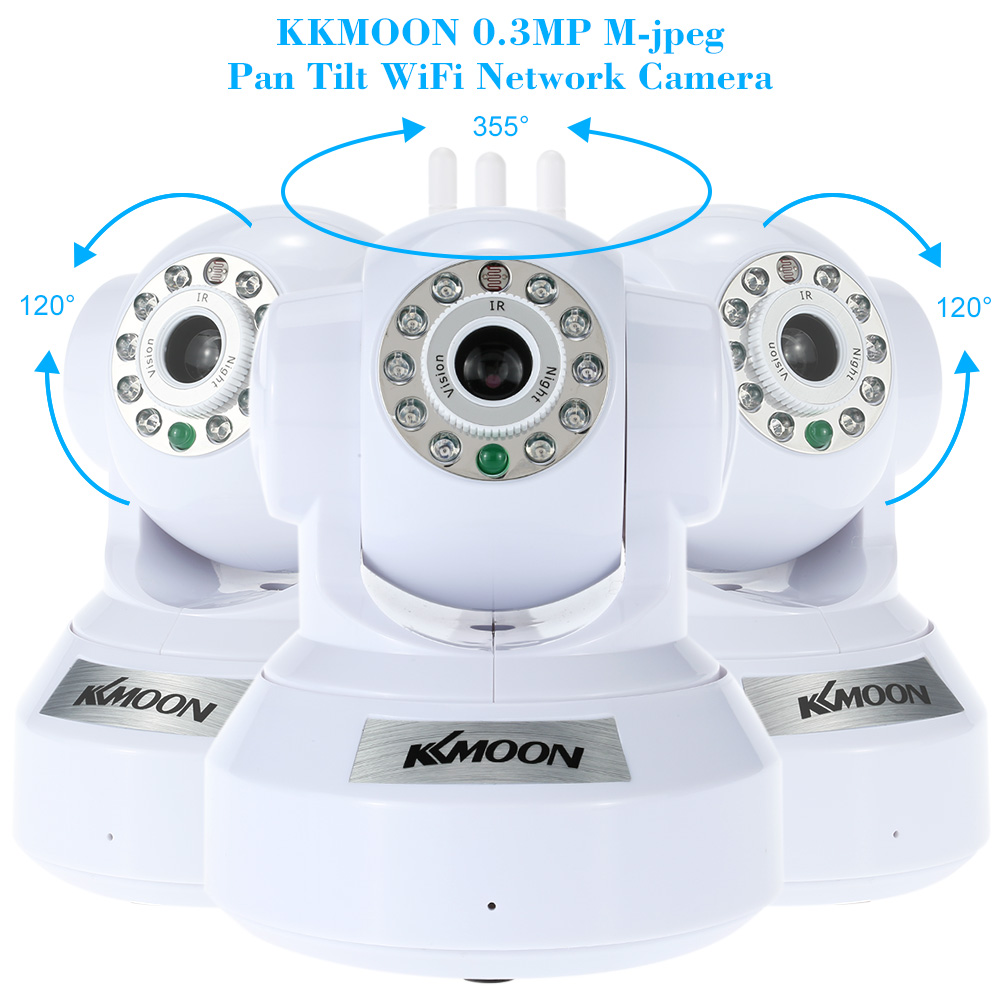

* Allow remote Pan/Tilt control (Pan : 355°& Tilt : 120°).
* Mechanical IR-Cut device offers outstanding day/night performance, great color.
* Allow remote viewing & record from anywhere anytime.
* Wi-Fi compliant with wireless standards IEEE 802.11b/g/n.
* Support TCP/IP, RTSP, P2P SMTP, HTTP, FTP, PPPOE and other Internet related protocols.
* Support 13 languages,64-channel view via Super-Client software, auto-search the device, remote control, remote video playback, E-mail alarm, etc.
Specifications:
| Features: | |
| System Security | Account, password authority management |
| Free DDNS | Not support free DDNS, supports dynamic IP |
| View by Phone | Support HD pic IOS, Android mobile view (iOS 4.3,Android OS 2.3 above) |
| Monitor Advantage | Support for IPhone, Android,Computer monitor. Miscrosoft certification plug in, no virus risk. |
| PnP | Plug & Play,99% penetration rate, Easy to setup: 1, connect the network cable and power adapter, 2.install APP, scan UID code to add camera. 3,Click online camera to view the camera |
| QR Code Scanning | UID scan technology applied, easy to operate, and highly confidential |
| Super Client | 1, 4, 9, 16, 25, 36, 64 channel central management software, no user number limitation, centralized surveillance, remote record and playback, alarm email ect |
| System | |
| OS | Embedded Linux OS |
| Video | |
| Compression Format | M-jpeg |
| Resolution | VGA(640 * 480), QVGA(320 * 240) |
| Image Sensor | 1/4" CMOS |
| Minimum illumination | 0.5Lux |
| SNR | ≥50dB |
| IR Control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode |
| Lens/Viewing Angle | 3.6mm@F1.4 |
| Night Vision | |
| Effect | 10pcs Φ5mm LEDs IR Distance: 10 m |
| Audio | |
| Input | Built in Microphone |
| Output | Internal speaker(8Ω1W) |
| P/T Network | |
| Socket | RJ-45 10/100Mb |
| P/T | Pan: 355°, Tilt:120° |
| Preset Postion | Suppor up to 16 preset postions |
| Network Protocol | TCP/IP,UDP/IP,HTTP,SMTP,FTP,DHCP,UPNP,NTP,PPPOE |
| Online Visitor | Support 4 online visitors simutaneoursly |
| WIFI | IEEE 802.11 b/g/n |
| Alarm | |
| Motion Detection | Support motion detecting |
| Certificate | |
| Certificate |
FCC CE RoHS |
| Other Information | |
| Model | TP-C516W |
| Housing Material | ABS |
| Application environment | Indoor |
| Power | DC 5V 2A |
| Temperature | -10~55 °C |
| Humidity | 10%~85% |
| Power Consumption | <5W |
| Color | White |
| Item Weight | Approx. 269g / 9.5oz |
| Item Size | Approx. 10.3 * 11 * 13.6cm / 4 * 4.3 * 5.4in (L * W * H) |
| Package Size | Approx. 17.3 * 14.4 * 12cm / 6.8 * 5.7 * 4.7in (L * W * H) |
| Total Weight | Approx. 585g / 20.66oz |
| Quantity | 1pcs |
| Warranty | 1 Year |
Package list:
1 * IP camera
1 * Power adapter
1 * Network cable
1 * Mounting bracket
2 * Mounting screws
1 * User manual
1 * CD
1 * Warranty card
